50A Battery Support SmartCharge PRO

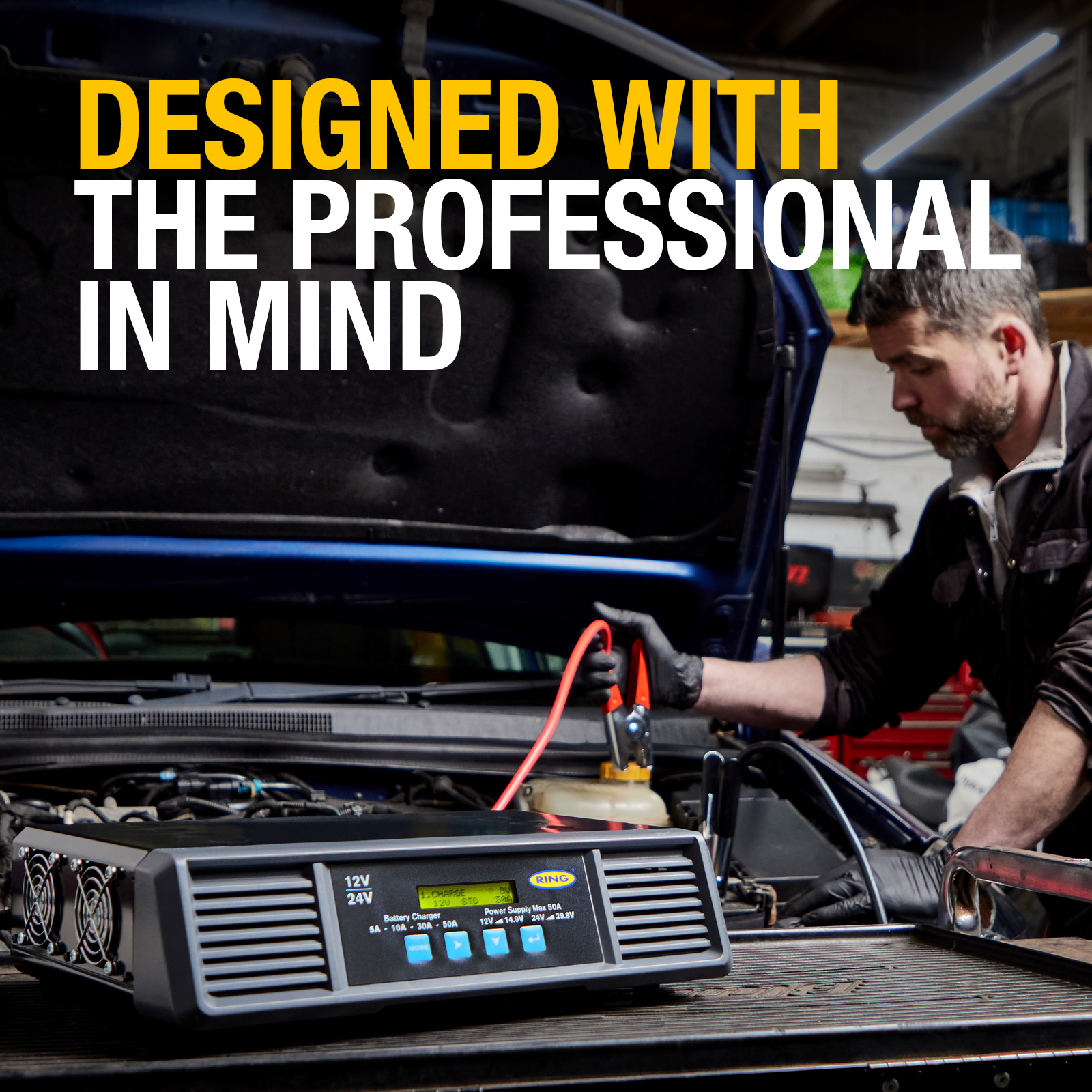

For workshop and showroom use

12V and 24V compatible

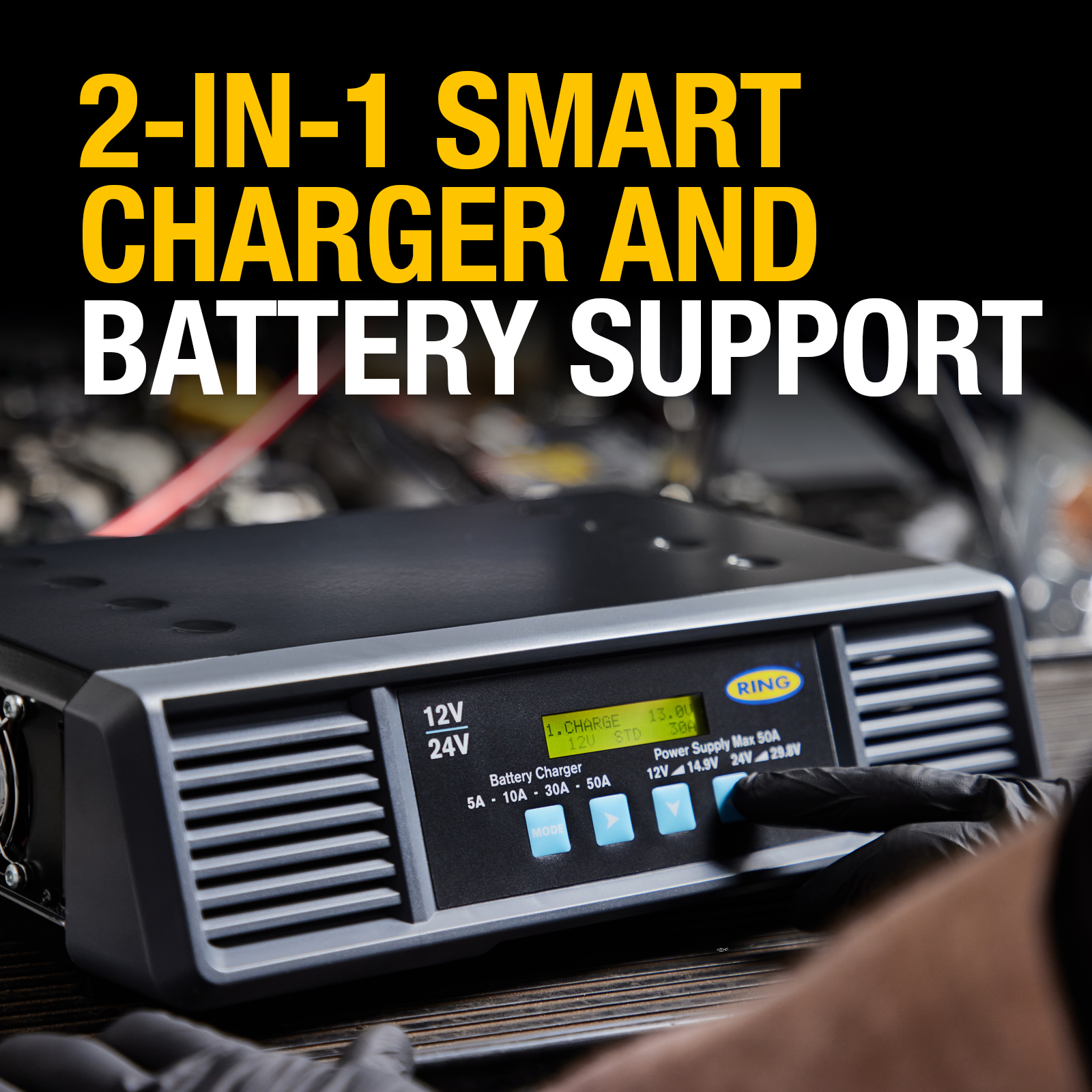

50A smart battery charger with multiple charge rate settings. A complete battery support unit, suitable for 12V and 24V vehicles with mixed battery types including Lithium and START/STOP. Slimline & light, ideal for intensive use with fleets of mixed vehicles, in garages, workshops and showroom environments. With heavy duty removable clamps.

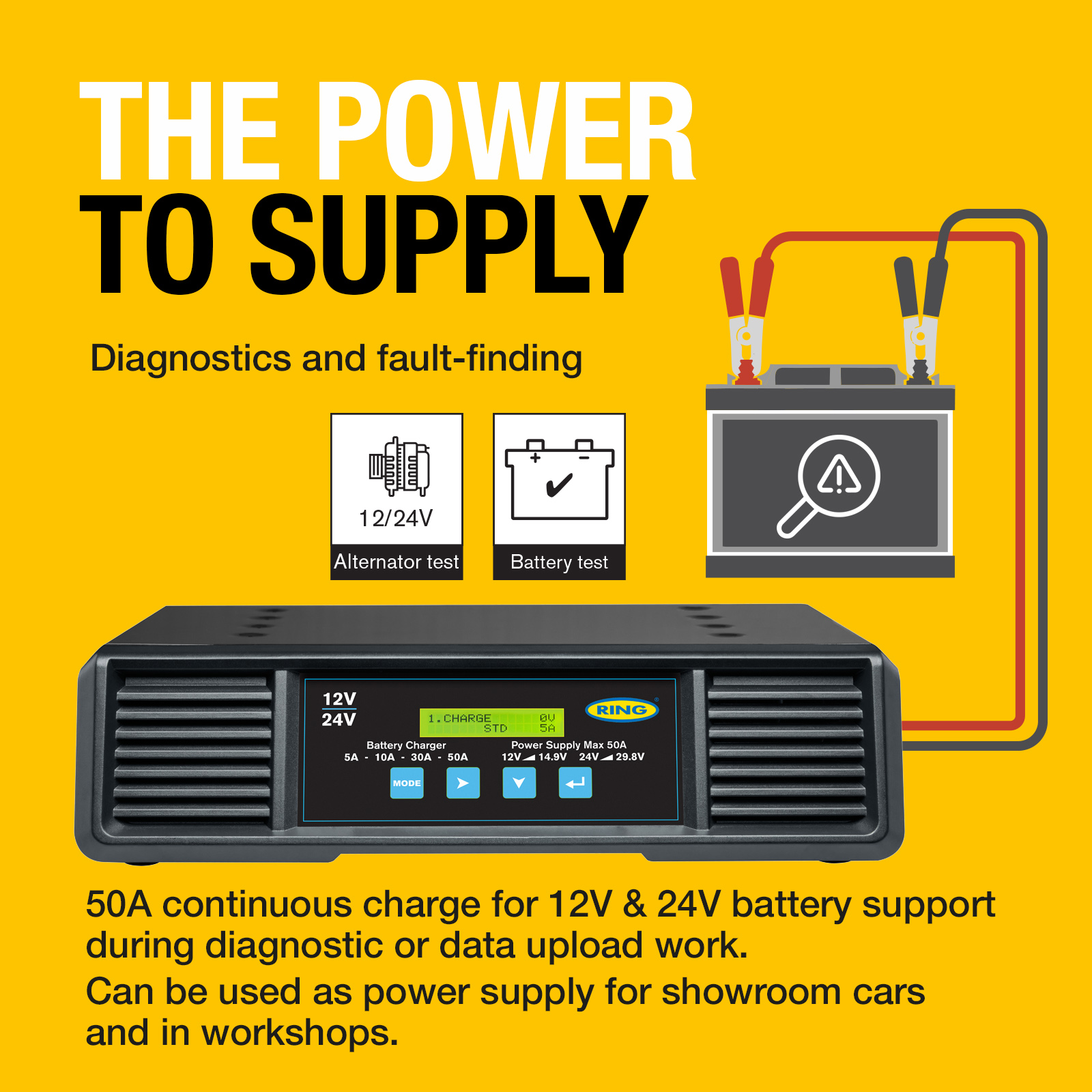

Using the power supply function, maintain a constant battery voltage level at both 12V & 24V for when appliances or programming & vehicle diagnostic equipment is connected and drawing power. Multi-chemistry and charging level selection allow the user to set the specific charge required for different battery types. Test functions provide battery and alternator diagnosis. With LCD display and an easy to navigate menu system.

Featuring smart charge technology which optimises battery performance and improves the ability to hold charge. Two dedicated charging curves, seven stage for Lithium batteries and nine stage for all other chemistries, optimising the battery performance and improving the ability to hold charge.

  • 12V and 24V compatible ideal for intensive use with fleets of mixed vehicles
  • Up to 50A Continuous charge
  • Rapid recharge in minutes
  • Stop/Start compatible
  • Variable charging rates 12/24V at 5/10/30/50A

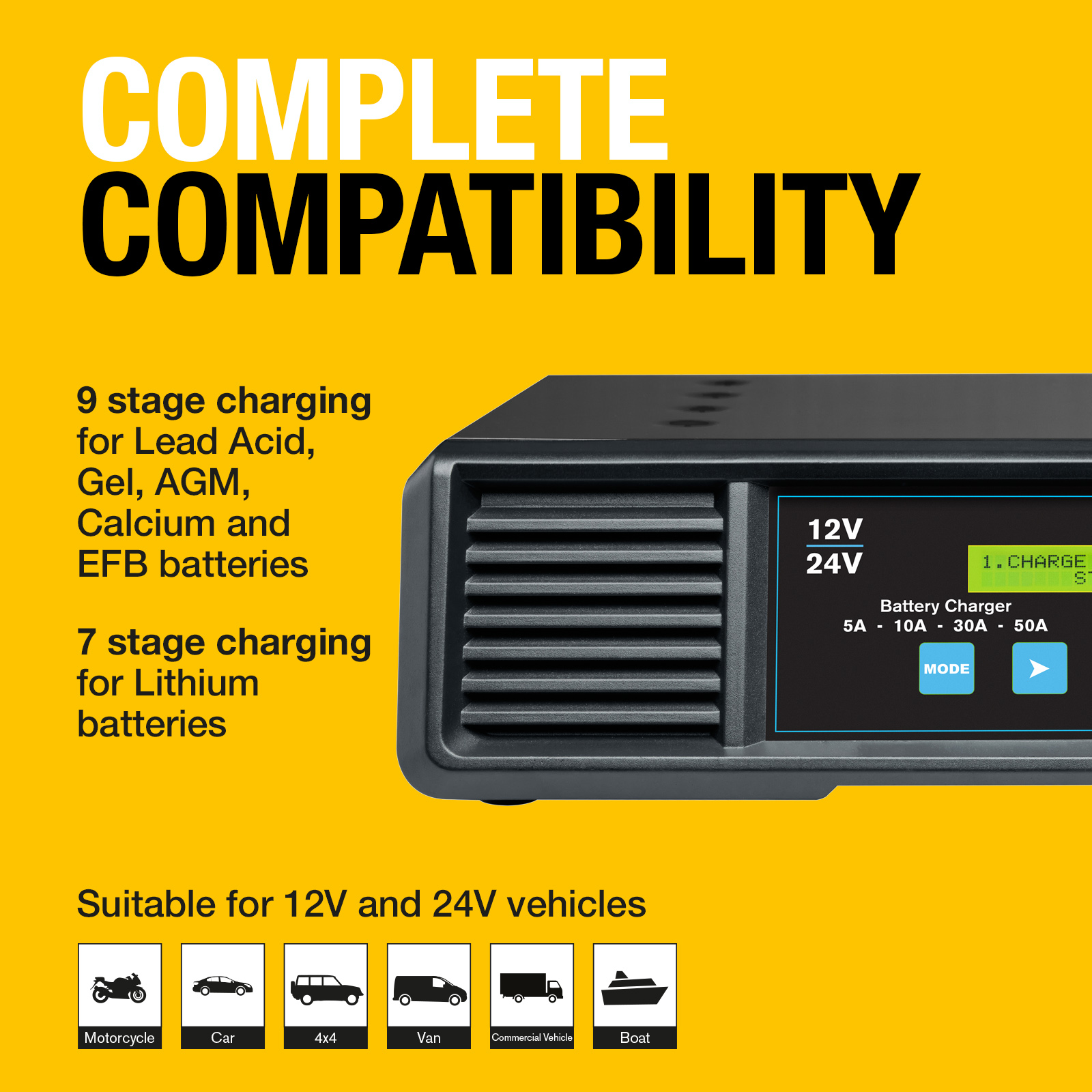

  • 9-Stage charging process for Lead Acid/Gel/AGM/Calcium/EFB batteries
  • 7-Stage lithium charging process for Lithium batteries

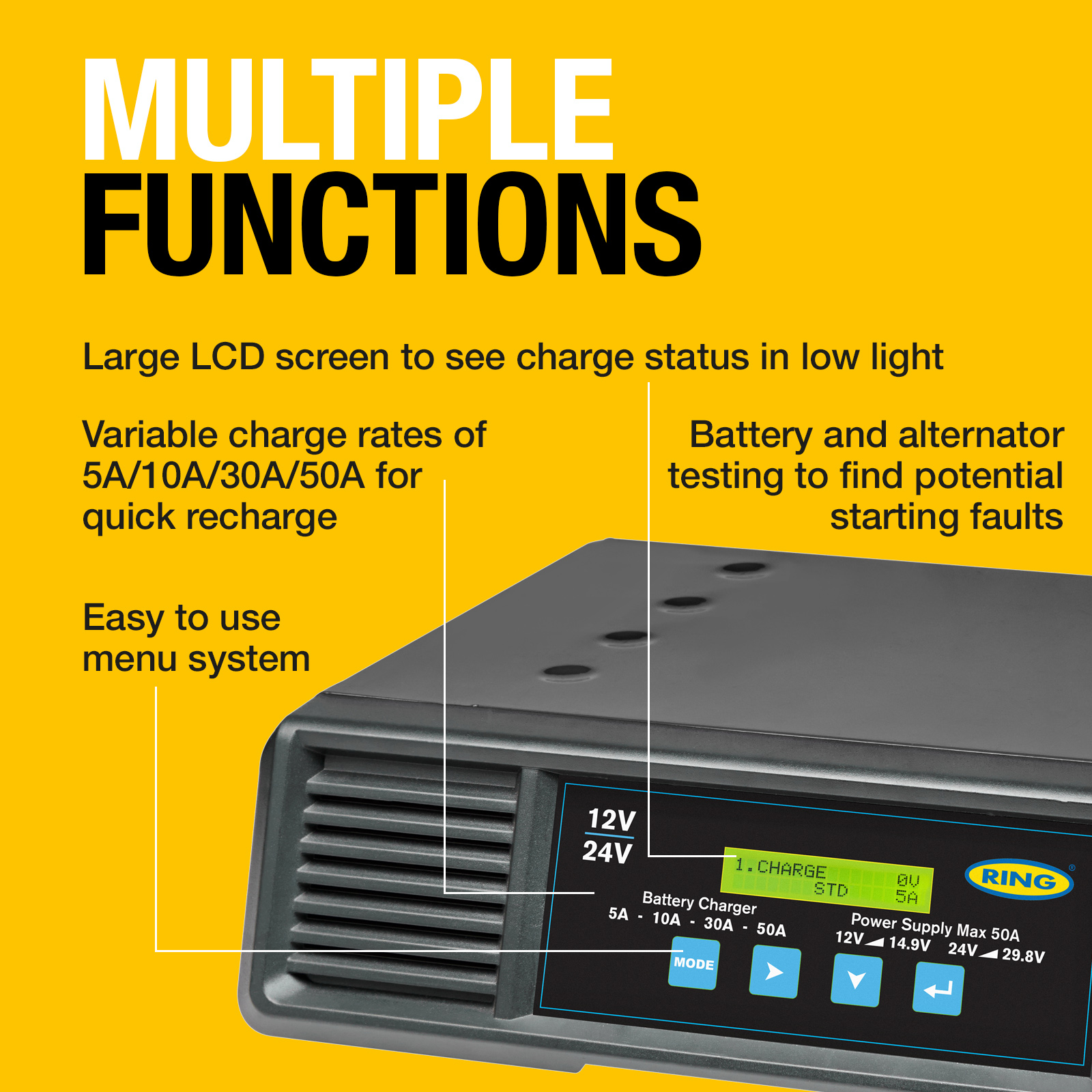

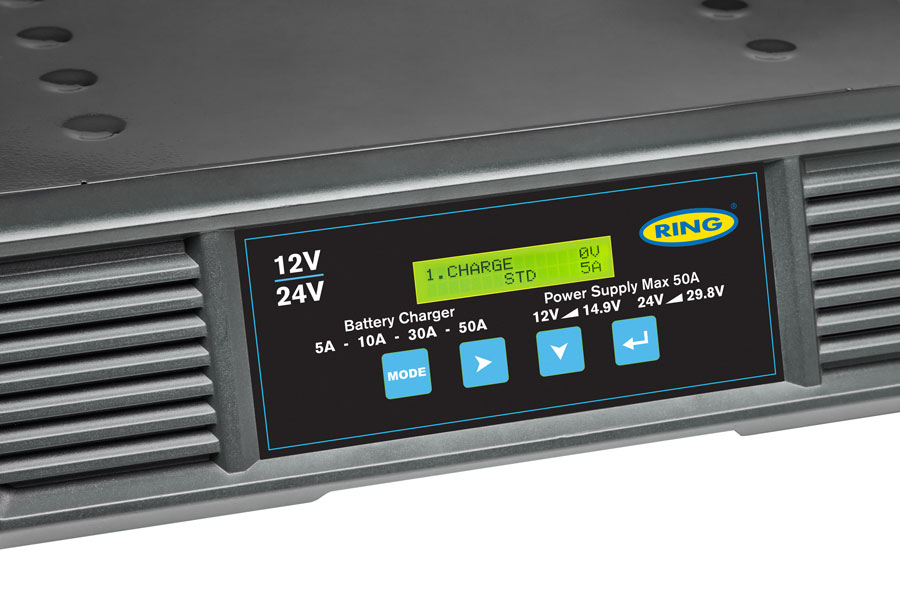

  • Large LCD display screen
  • Battery and alternator diagnosis
  • Pre-charge health check for your engine system
  • Easy to use menu system

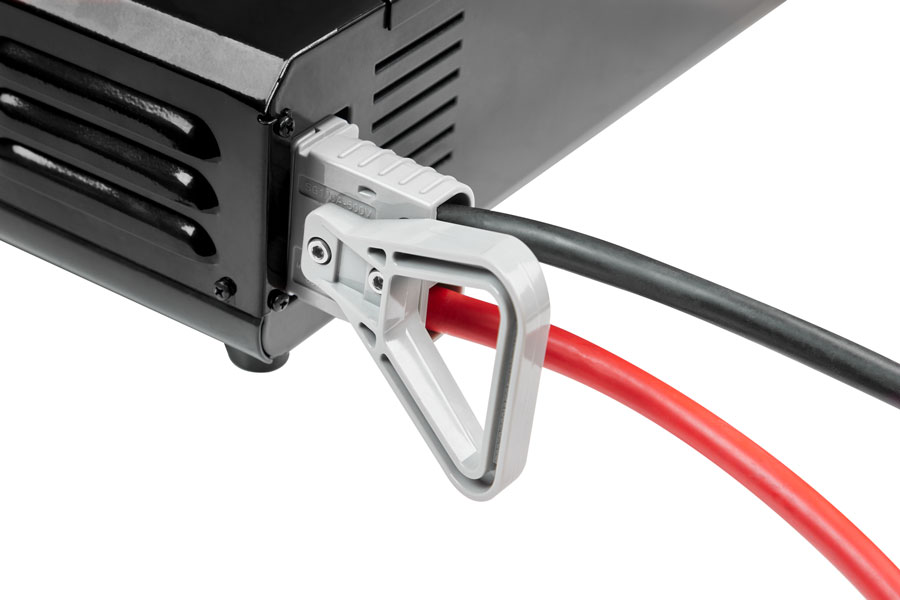

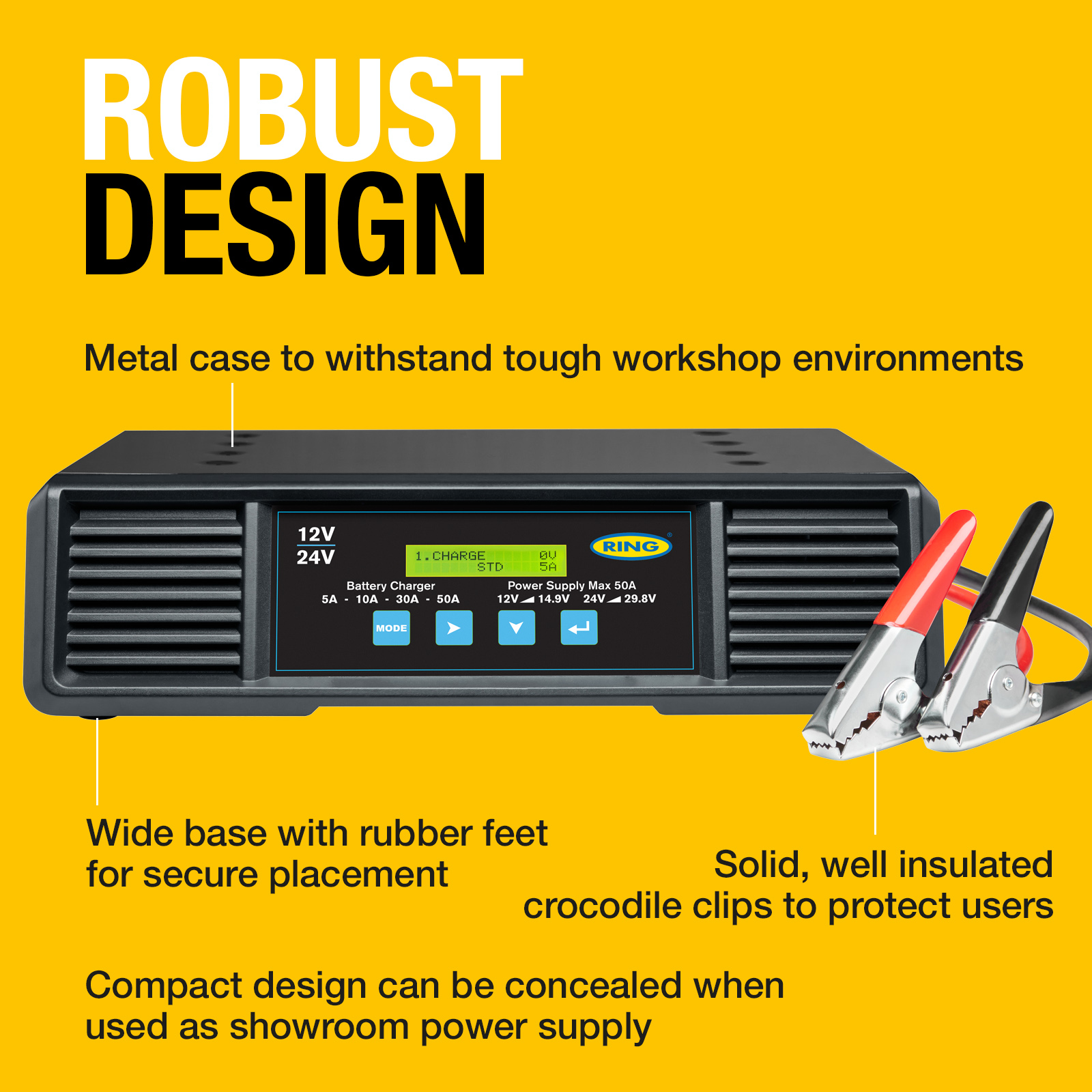

  • Removable fully insulated high capacity battery clamps

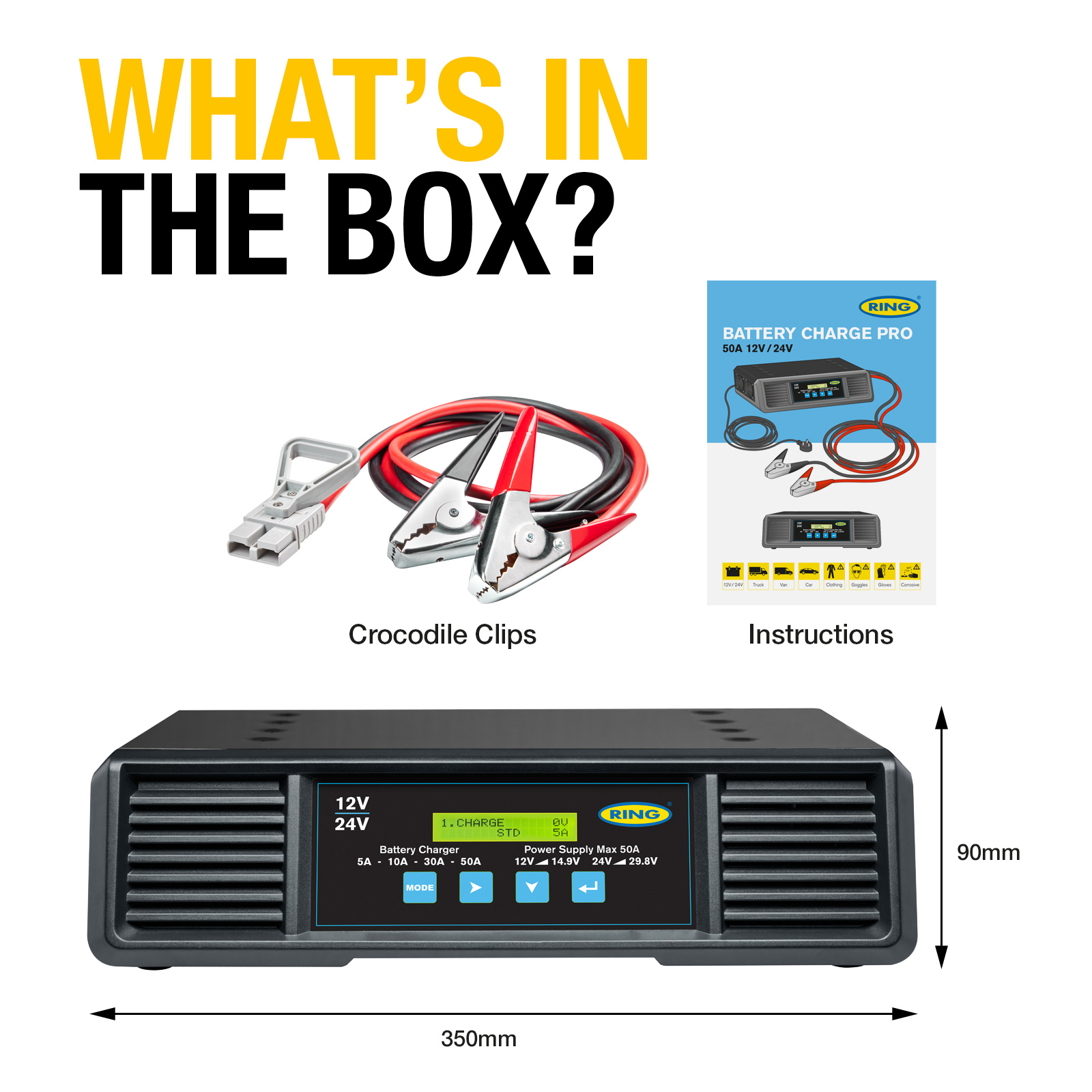

Product dimensions (mm): HxWxD
102 x 370 x 247
Weight (kg)
6.048
Voltage
12/24V
Wattage
1500W
AmpsOutput
50A MAX

Available as

BLISTER - SINGLE
Code: RSCP5024

BLISTER - SINGLE
