Ring Automotive

RINVP600/REINVP600 PowerSourcePure 600W Inverter

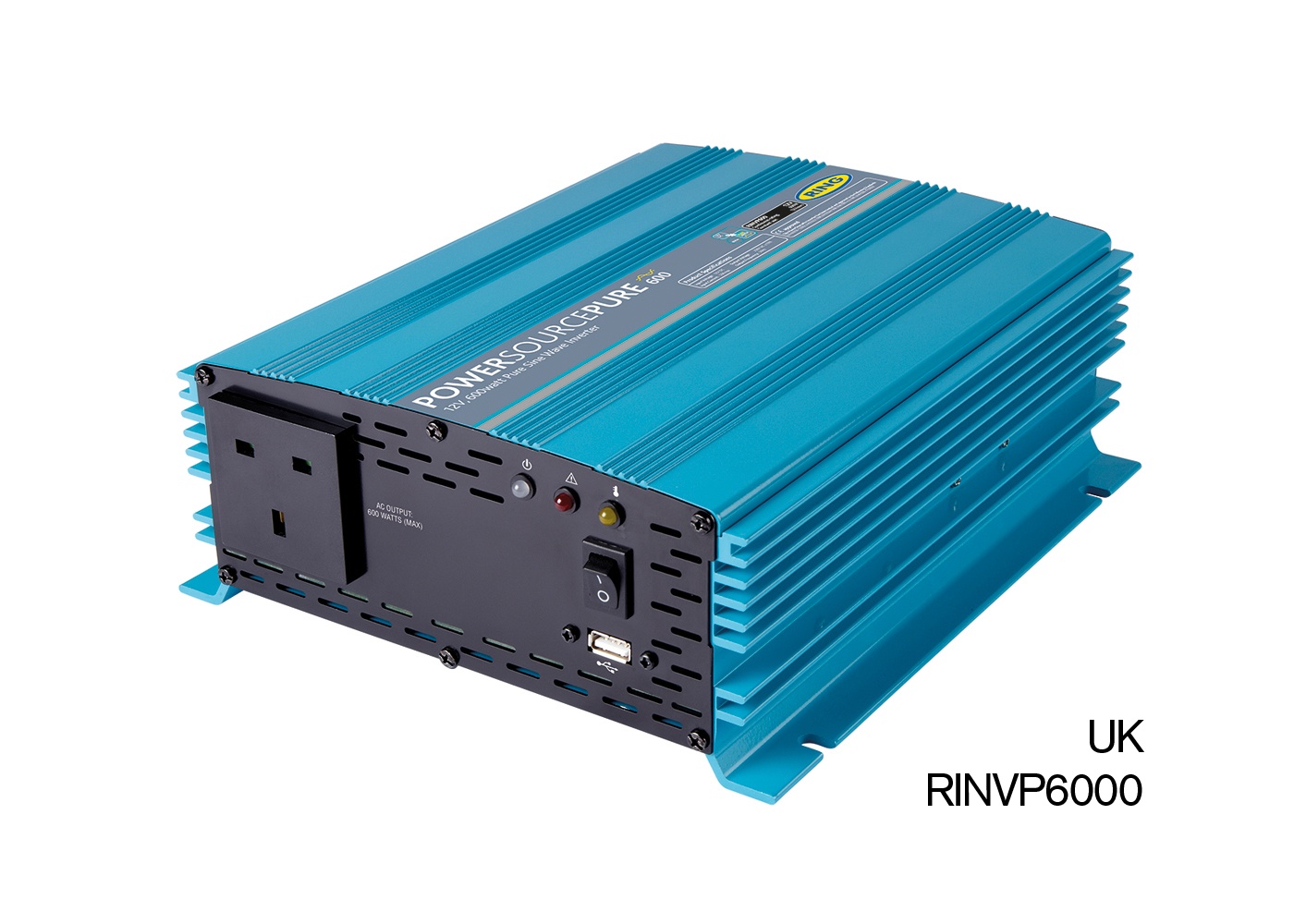

RINVP600 UK pure sine wave PowerSourcePure 600W inverter

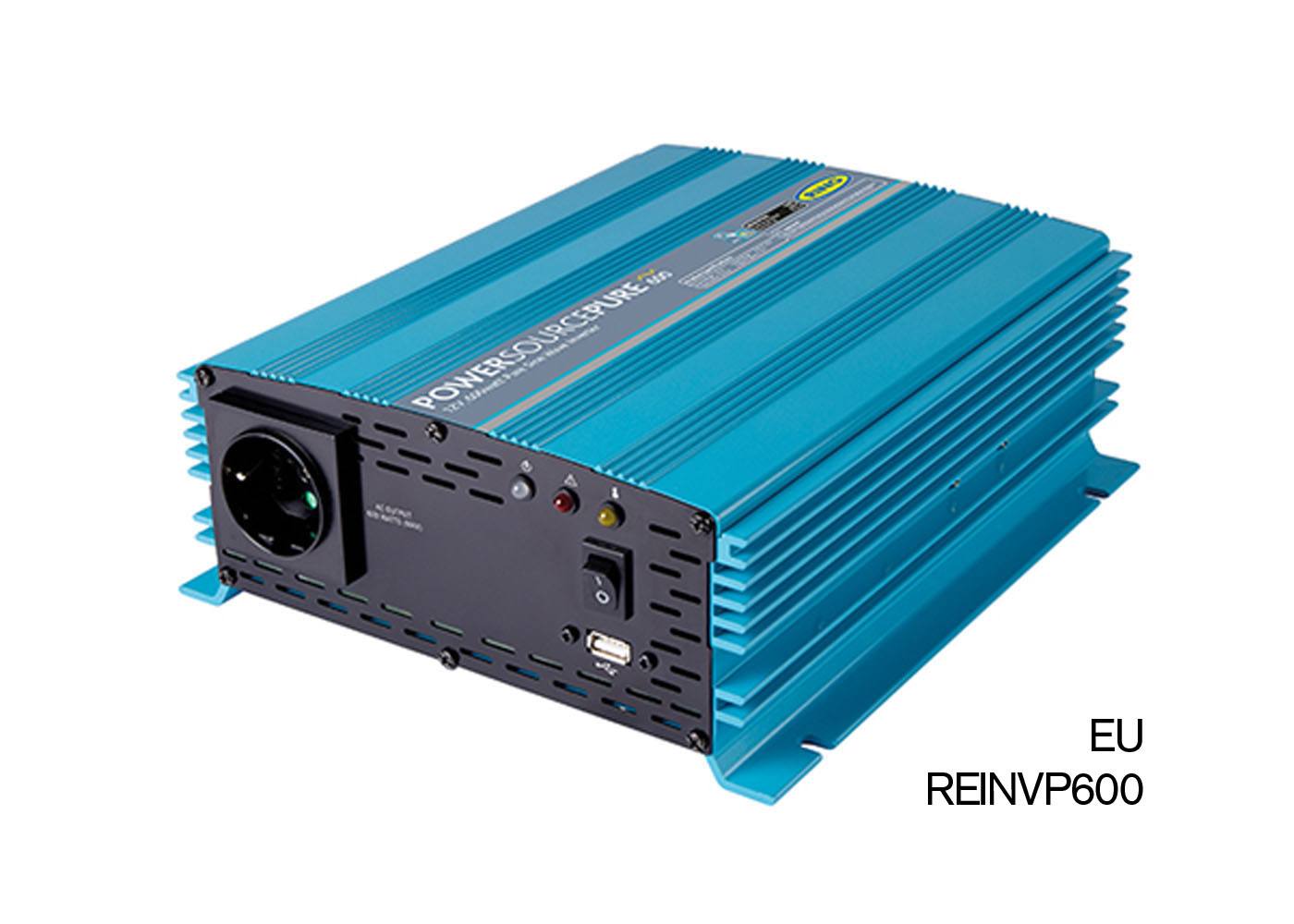

REINVP600 EU pure sine wave PowerSourcePure 600W inverter

PowerSourcePure 600W Inverter

Pure sine wave

600W 12V DC

Professional 600W pure sine wave inverter, suitable for 12V vehicles. Converts 12V power into useful 230V power - ideal when working remotely where no mains power is available, and particularly for vehicle conversions. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to batteries and able to provide power for up to 12 hours.

Pure sine wave inverters provide an extremely pure sine wave output, which replicates the normal domestic mains supply. This makes them ideal for powering more sensitive electronics, and able to power the widest range of equipment. This is particularly valuable for powering those products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive audio/visual equipment.

The PowerSourcePure 600W Inverter is able to power devices up to 600W, such as mircowaves, an oxygen concentrator or a small fridge. Features 1x plug sockets, available in three pin (part number RINVP600) and two pin (part number REINVP600), plus a high power USB port for charging smart phone, tablets and other devices. Includes low power alarm to alert you when the battery powering the inverter is running low - preventing the inverter from draining the vehicle battery - and automatic shut down. Fully protected against overload, over temperature and low/high voltages. The LED display shows operating mode and fault conditions.

All Ring inverters are tested and certified to the relevant EMC and LVD Directives.

  • 600W pure sine wave inverter
  • Suitable for 12V vehicles
  • Rugged extruded metal casing
  • Heavy duty input cables and clamps
  • Provides continuous power for up to 12 hours
  • Features 1x plug socket, plus a high power USB
  • Low power alarm and shut down to prevent inverter draining the battery
  • Fully protected against overload, over temperature and low/high voltage
  • LED display shows operating mode and fault conditions
  • CE approved
Product dimensions (mm): HxWxD
90 x 224 x 281
Weight (kg)
3.378
Voltage
12V DC Input 230V AC Output
Wattage
600W
Continuous power rating (up to 12hrs)
600W
Surge power rating (up to 1 sec)
1200W
Output voltage
230V AC+10%
Output frequency
50Hz
Output waveform
Pure sine wave
Input voltage
10V - 16V
Efficiency
>85%
No load current draw
<0.6A
Low battery alarm sounds
10.5V +/- 1V
Low battery shut down
10.0V +/- 1V
Thermal protection
60°C +/- 10°C
USB
2A

Available as

BOX - SINGLE
Code: RINVP600

BOX - SINGLE

BOX - SINGLE
Code: REINVP600

BOX - SINGLE
