Ring Automotive

RCC23P05 3 Phase 32A Electric Vehicle Charging Cable

RCC23P05

3 Phase 32A Electric Vehicle Charging Cable

Type 2 to Type 2

480V 32A 22kW

SHOP NOW

Ring are making electric driving accessible to everyone! With our range of high quality, durable products, the transition from diesel/petrol vehicles to electric vehicles will be easy. Tested to the highest standards, such as IP65 water resistance and IK10 impact resistance and certified to CE, UKCA standards and independently tested by TUV test house, Ring’s EV cables will give years of charging for EV motorists.

The Ring RCC23P05 Type 2 to Type 2 Electric Vehicle Charging Cable is compatible with all 32A, Type 2 charge points.

Charge times:

30kWh Battery - 1.5 hours
60kWh Battery - 3 hours
90kWh Battery - 4.5 hours

  • Electric vehicle charging cable for electric and plug in vehicles
  • Compatible with all 32A (3 phase) Type 2 charge points

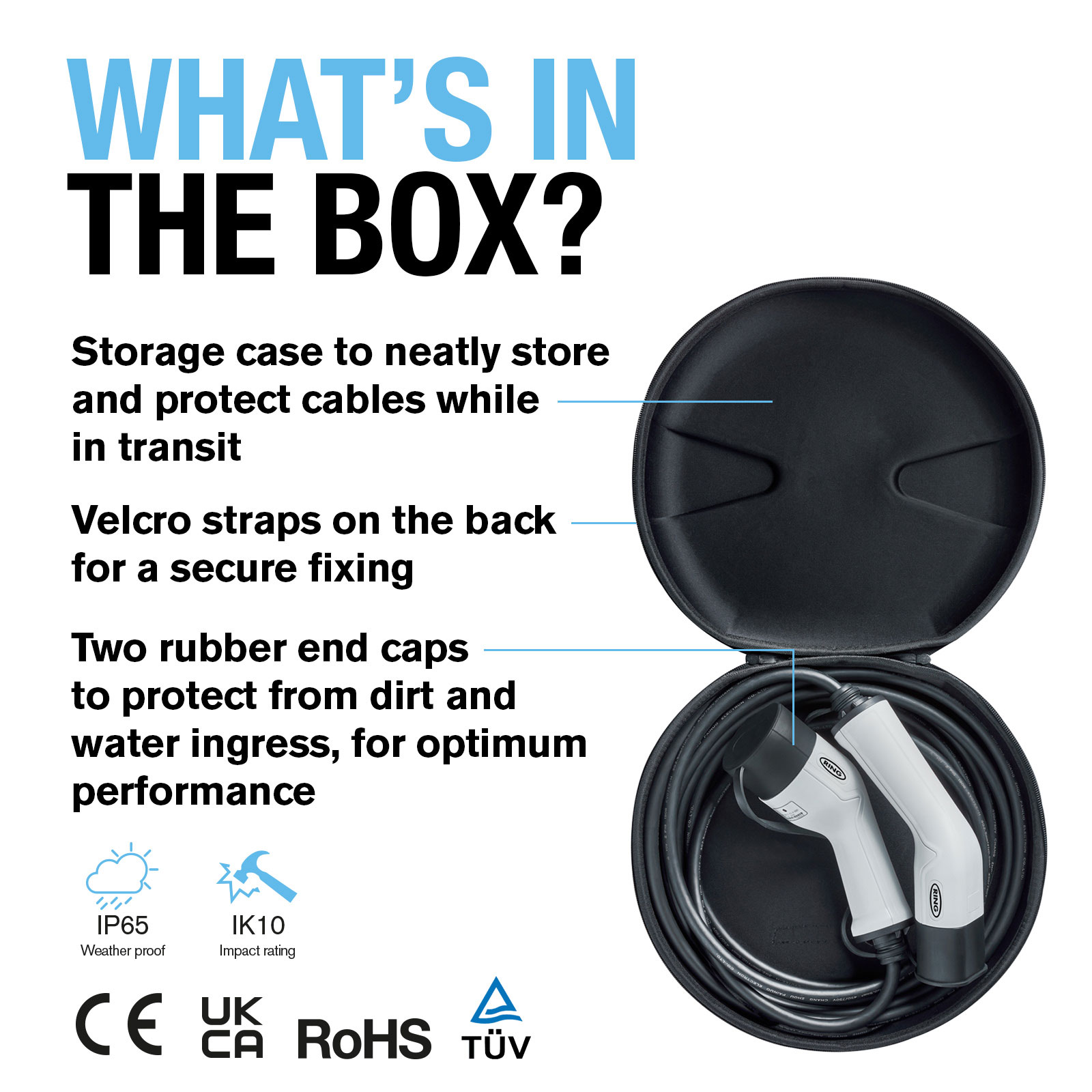

  • Hardwearing, compact and heavy duty storage case to store your cables securely

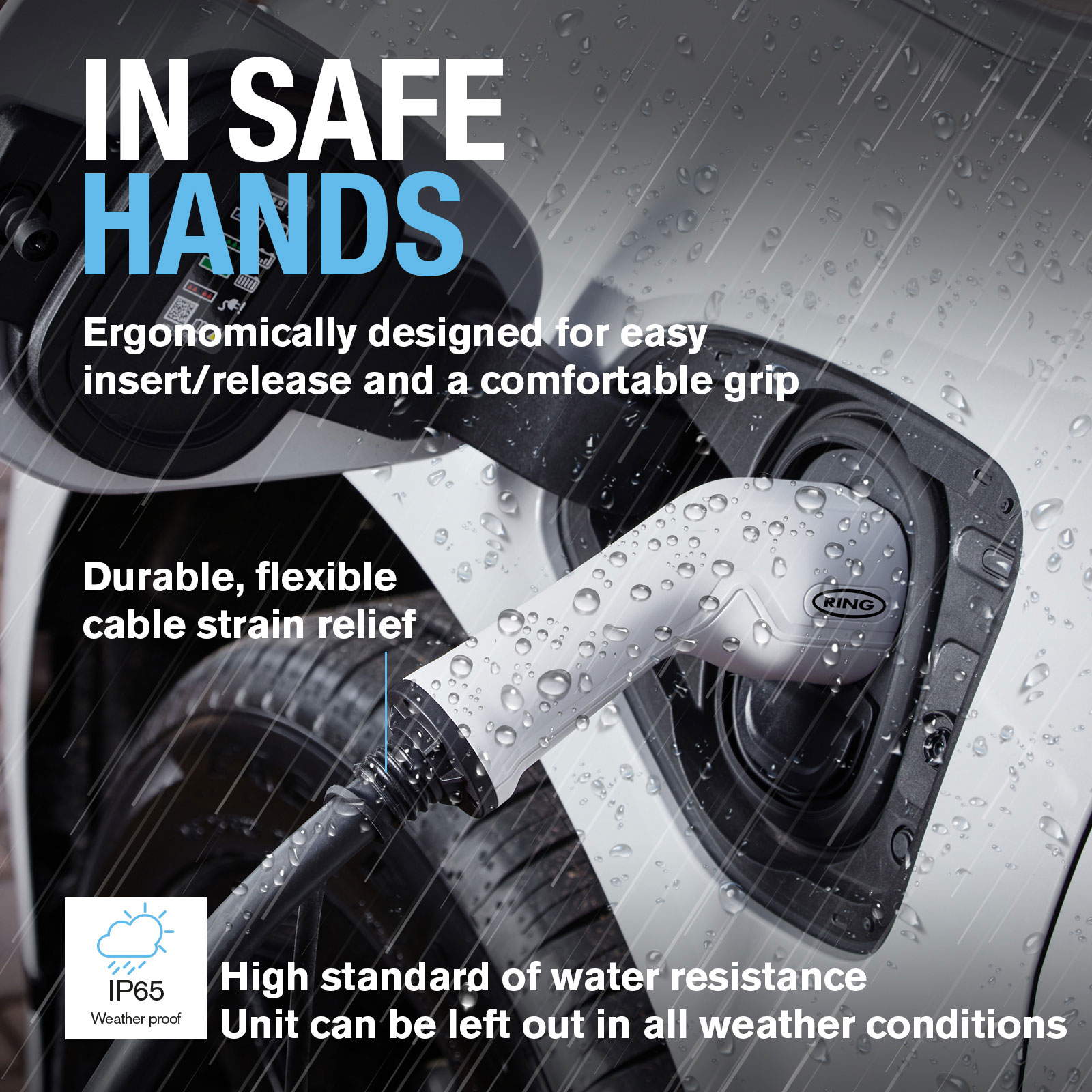

  • Dust proof and waterproof to IP65 rating (when connected can be left out in all weather conditions)

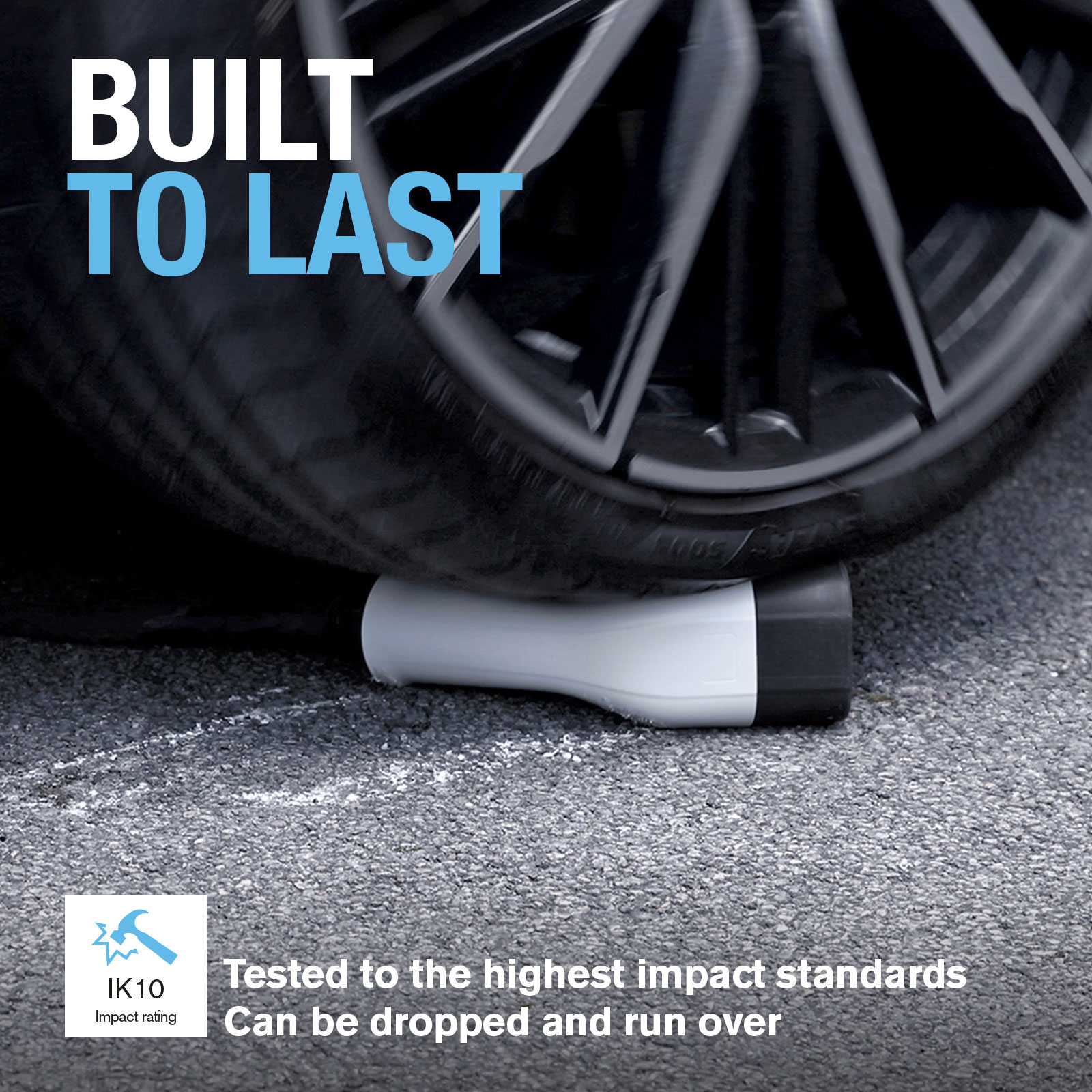

  • IK10 rated, the highest impact resistance standard to withstand being dropped or run over

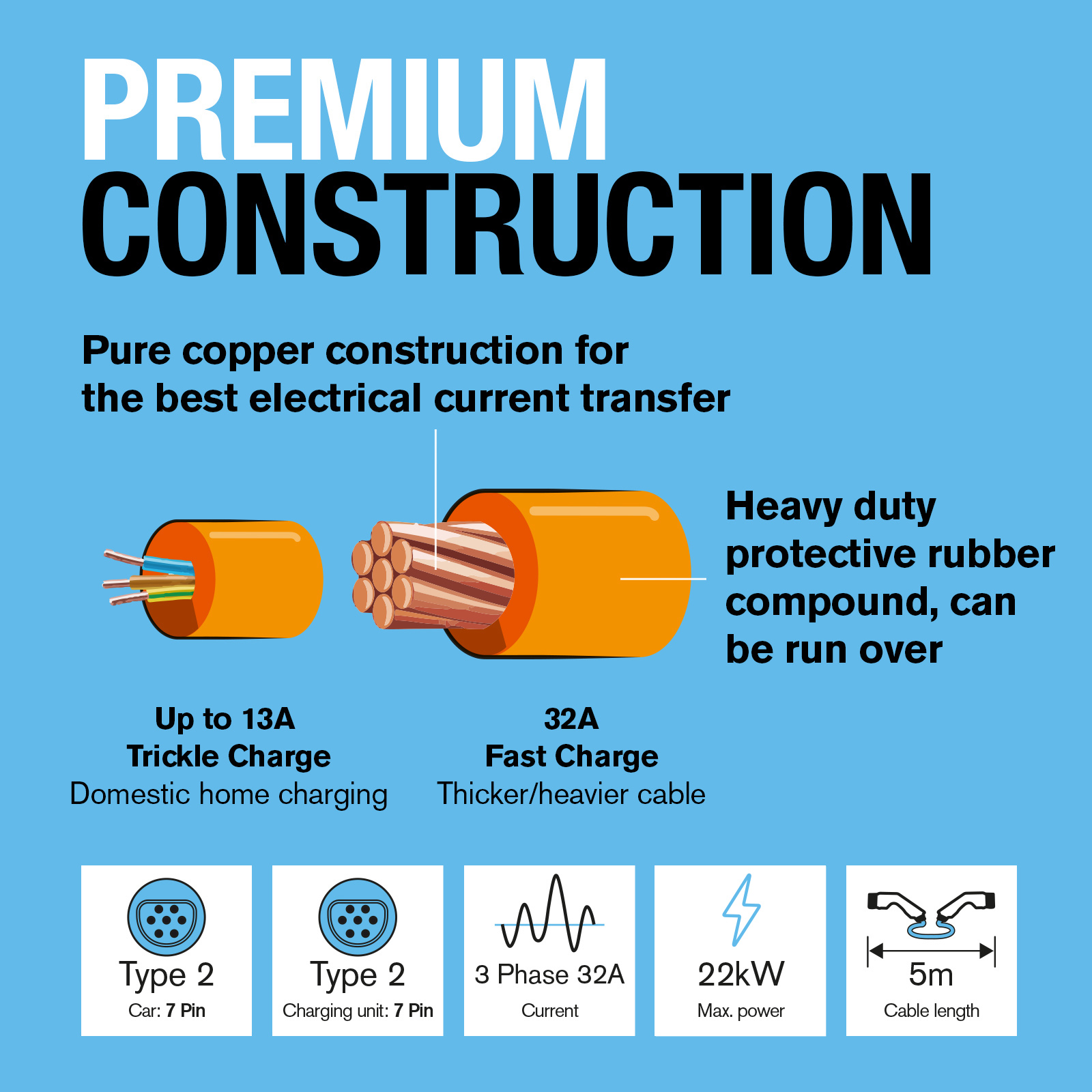

  • Premium Quality - Made from pure copper cable for the best transfer of electrical current
  • Operating temperature -40° C to 85° C

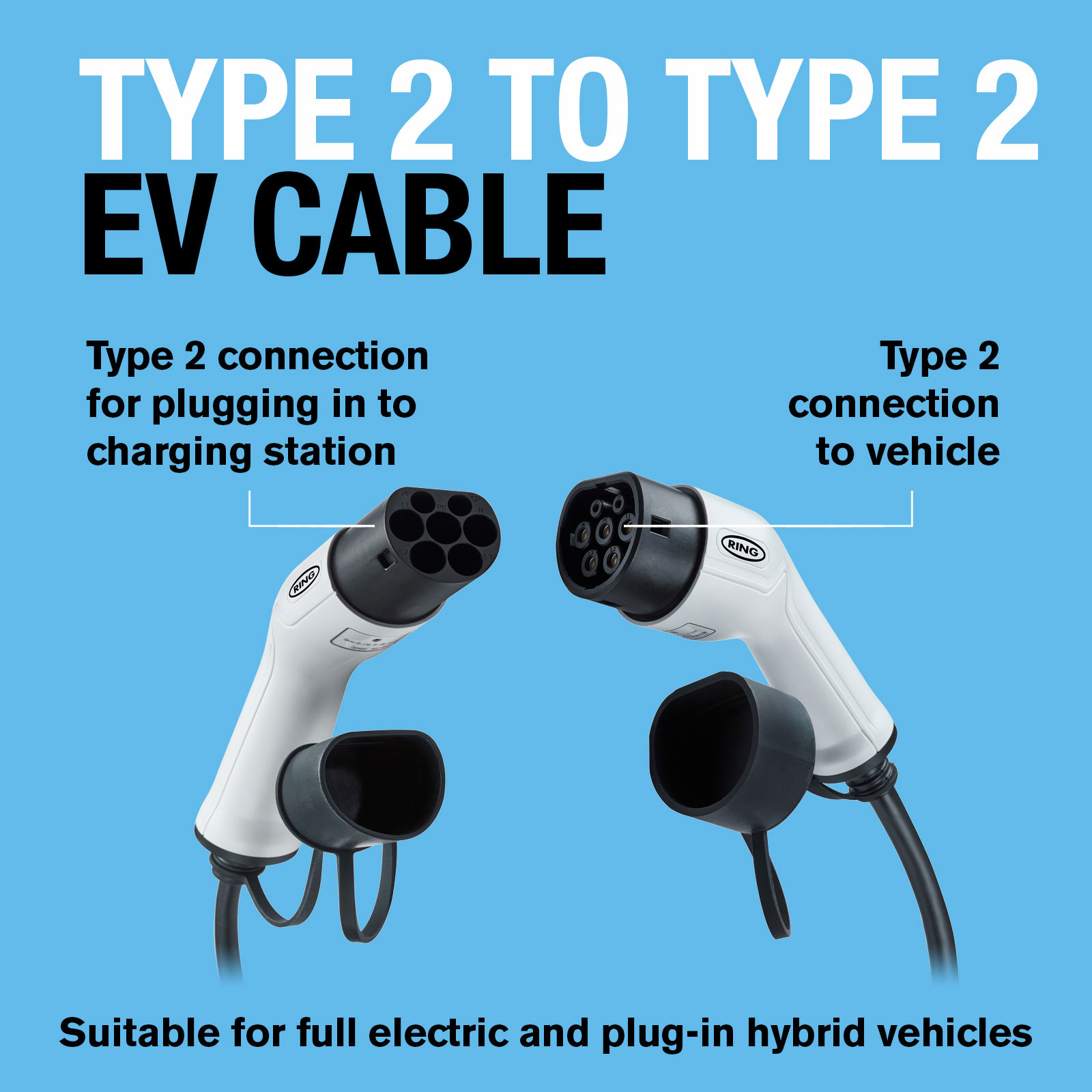

  • Type 2 (IEC 62196-2) to Type 2 (IEC 62196-2)
  • 5m overall length
Product dimensions (mm): HxWxD
362 x 393 x 119
Weight (kg)
3.806
Voltage
480V
Wattage
22kW
AmpsOutput
32A
