Ring Automotive

RBAG750 Graphical  Battery Analyser

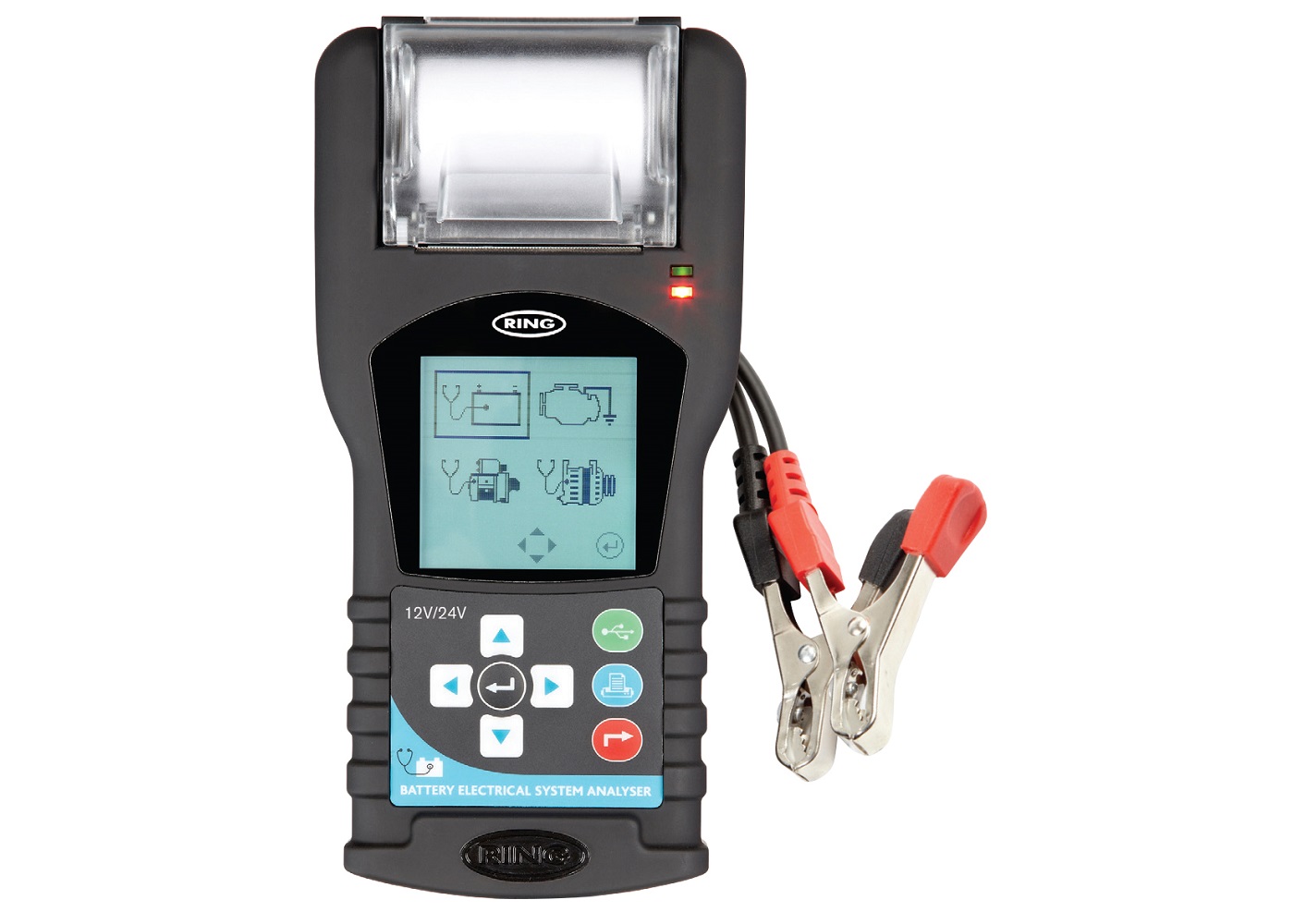

RBAG750 Graphical Battery Analyser

Graphical  Battery Analyser

Complete health check for your engine system

12V/24V

The RBAG750 Graphical Battery Analyser can provide a complete health check of the battery and electrical systems of a 12V and 24V vehicle, be it a motorcycle, car or truck.

This multi-function unit can test and analyse the battery, alternator, starter and vehicle earth via its intuitive graphical interface. Results can be printed using the built-in thermal printer, or downloaded to a computer through a USB.

RBAG750 Set Up RBAG750 Software

For Ring's full range of workshop battery maintenance tools, click here

  • 12V/24V graphical battery analyser
  • Carry out a battery health check on Flooded, AGM or EFB batteries rated up 2000CCA
  • Detect battery charging problems by checking alternator voltages fall within normal operating ranges
  • Check for potential starting problems by measuring battery voltage drop during engine cranking
  • Test earth connections between battery, engine and chassis are in good condition
  • Integrated thermal printer - instantly print test results including garage name and address details
  • Memory storage for up to 80 results, allowing rapid multi-vehicle testing
  • PC software included for download of results and full report printing
  • A handy voltmeter feature checks for flat batteries before each test
  • Comes with robust storage case
Product dimensions (mm): HxWxD
461 x 90 x 352
Weight (kg)
1.766
Voltage
12/24V DC
Battery Info:
Batteries Included
Type: RECHARGEABLE NiMH
1 x CUSTOM
RBAG750 spec sheet RBAG750 Spec Sheet FR RBAG750 Spec Sheet DE RBAG750 Spec Sheet ES RBAG750 Spec Sheet IT RBAG750 Spec Sheet NL
RBAG750 Graphical Battery Analyser handbook

Available as

BOX - SINGLE
Code: RBAG750

BOX - SINGLE
